Quadralupe chain swing RH410KW - brown (f.h. 1,5 m)

Products from the same category:

Previous Next

Product code: RH-410KW-15

Seats and hinges are not part of the swing. It is necessary to buy a seat (4 pieces) of your choice and curtains (8 pieces). Quadralupe chain swing RH410K - metal (f.h. 1,5 m) - we offer three color variants of the support structure - red, blue and brown. More information

Choose the color option

Quadralupe chain swing RH410KB - Blue (f.h. 1,5 m)

Quadralupe chain swing RH410KR - red (f.h. 1,5 m)

We advise to buy more pieces

Product - SB-002-15

BABY seat SB002 (including chains, f.h. 1,5 m)

Request price

BABY SB002 seat – fall height 1.45 m, supplied with 2 chains, without joint hangers. The hangers may be purchased separately here .

Product - HZ-001

Swing joint HZ001 (for Baby and Normal seat)

Request price

Swing joint HZ001 for Baby and Normal seat, price for 1 piece.

Product - SN-001D-15

Normal seat SN001D (including chains)

Request price

Normal seat SN001 – aluminum, covered with a soft and comfortable rubber. Supplied with 2 chains (1,8 m), without joint hangers. The hangers may be purchased separately here .

Technical specifications

Product code:	RH-410KW-15
Weight:	245.77 kg
Recommended age:	2-15 years
Free fall height:	1,5 m
Load capacity:	216 kg
Maximum number of users:	4

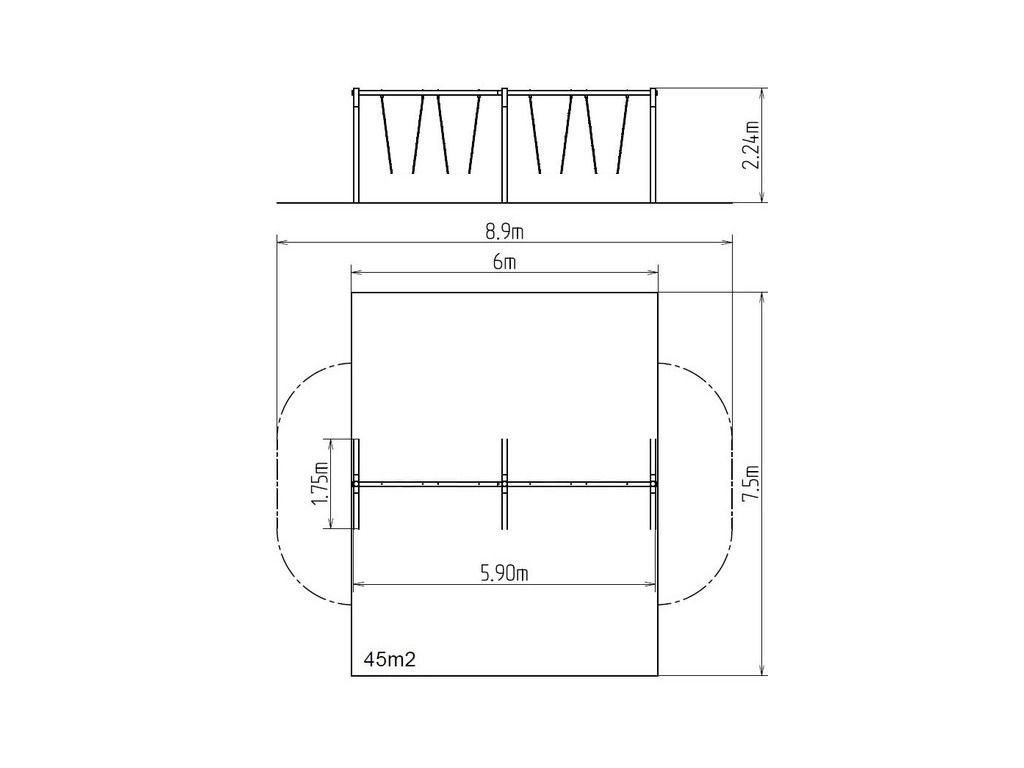

Measurements:	5,9 x 1,75 x 2,24 m
Required area for assembly:	8,9 x 7,5 m
Fall damping surface:	45 m²

The support structure of the swing is made from structural steel (steel profile 100 x 100 mm), which is zinc coated and KOMAXIT powder coated according to the RAL colour chart and is fixed in a concrete bed.

The swings are hung on a metal girder using galvanized chains. All fastening material is galvanized or stainless steel.

Insert new comment

No comments or questions Quadralupe chain swing RH410KW - brown (f.h. 1,5 m) regarding this product. Do not hesitate to ask.

Technical sheet [170 kB, PDF]
