UNIVERSAL 4U601D

UNIVERSAL 4U601D

Products from the same category:

Product code: 4U-601D-15

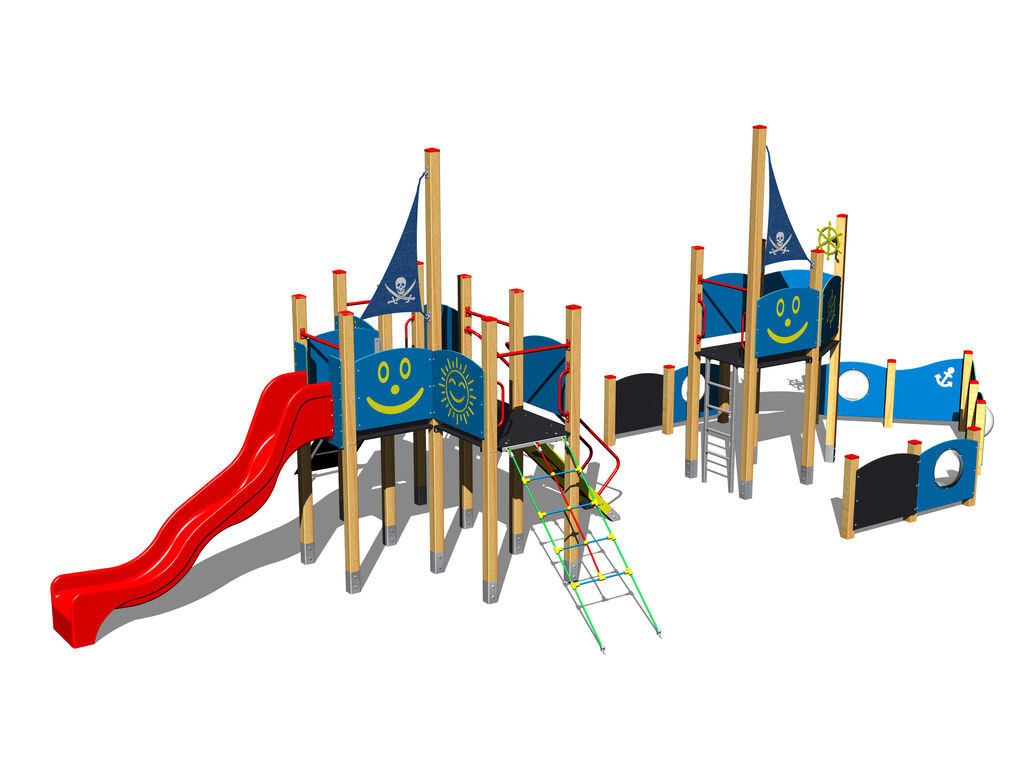

6x tower, slide, 2x post with a flag, sloping net access, sloping climbing wall, helm made from HDPE, 10x barrier from HDPE, 2x barrier with anchor, 2x drawing board, 4x barrier with an aperture, ladder, sloping ramp with steps and metal handles. More information

Ask

Technical specifications

Product code: 4U-601D-15
Weight: 808.0 kg
Recommended age: 3-15 years
Free fall height: 1,5 m
Load capacity: 1404 kg
Maximum number of users: 26

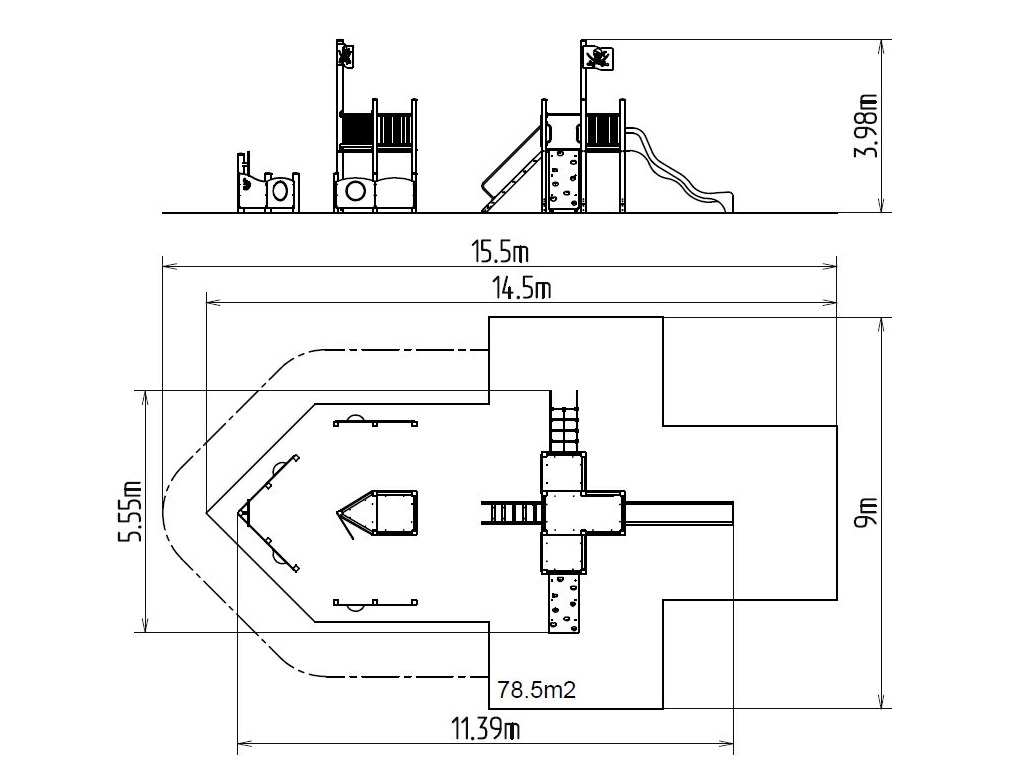

Measurements: 11,39 x 5,55 x 3,98 m
Required area for assembly: 15,5 x 9 m
Fall damping surface:
78,5 m2

The tower unit support structure is made from 100 x 100 mm thick glued wooden supports. This solution ensures maximum protection against cracking, which is common for products made from solid wood. The wooden supports are impregnated and coated with a triple layer of lacquer, which meets the terms and conditions of the EN71/3 Standard (safe for children's toys). The structures are anchored into the ground in steel plates, which are protected against corrosion by hot-dip galvanizing and fixed in a concrete bed. The anchors are fastened to the play unit with bolts and their structure ensures that they are not in direct contact with the ground. All other metallic elements are also zinc coated and treated with baked paint KOMAXIT according to the RAL colour system.

The slide is made from fibreglass. The surfaces of the slide, steps, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The ropes and nets are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and are connected with plastic or aluminium joints. The platforms and the sloping climbing wall are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). The climbing holds are made from the mix of silica sand and epoxy resin, which ensures long life, colour preservation as well as skin friendly surface. All fastening material is galvanized or stainless steel.
