Game set classic UNK2022KW - brown

Products from the same category:

Previous Next

New product

Product code: UNK-2022KW-15

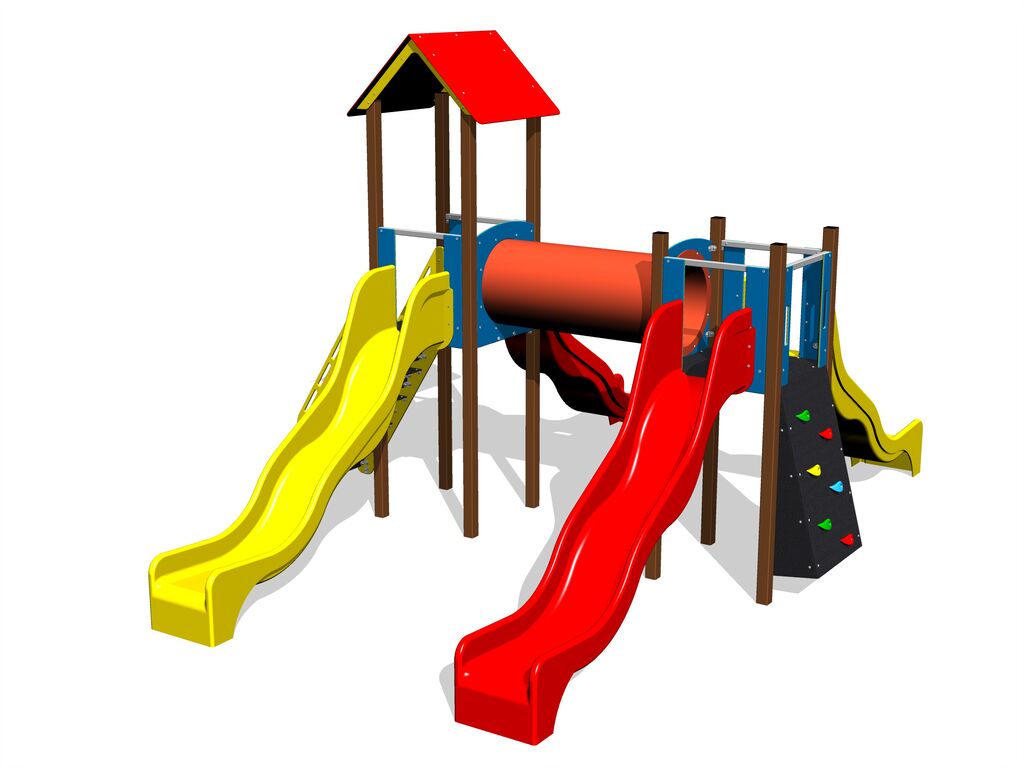

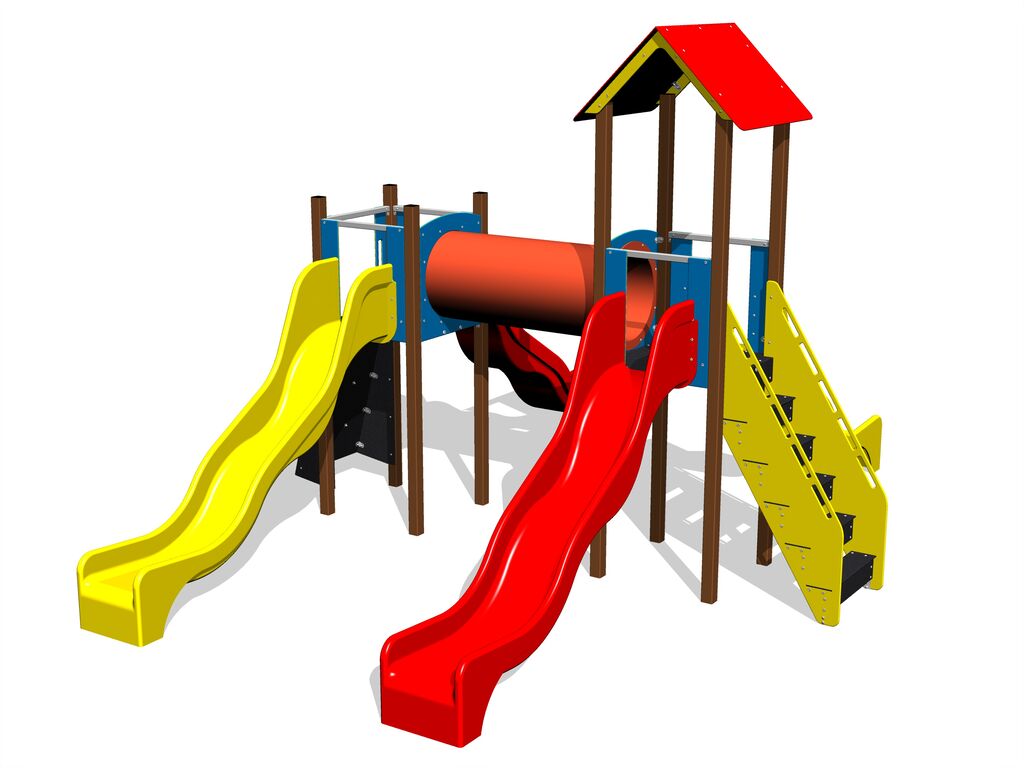

2x tower, 4x slide, A-shaped roof, sloping ramp with plastic side, sloping climbing wall, crawl tunnel between the towers. More information

Choose the color option

Game set classic UNK2022KS - silver

We advise to buy more pieces

Product - SN-001-15

Normal seat SN001 (including chains)

Request price

Normal seat SN001 – aluminum, covered with a soft and comfortable rubber. Supplied with 2 chains (1,8 m), without joint hangers. The hangers may be purchased separately here .

Product - SN-003-15

Special seat SN003R (including chains)

Request price

Special seat SN003 – HDPE with shock-absorbing bumper. Supplied with 2 chains (1,8 m), without joint hangers.

Product - SB-002-15

BABY seat SB002 (including chains, f.h. 1,5 m)

Request price

BABY SB002 seat – fall height 1.45 m, supplied with 2 chains, without joint hangers. The hangers may be purchased separately here .

Product - HZ-001

Swing joint HZ001 (for Baby and Normal seat)

Request price

Swing joint HZ001 for Baby and Normal seat, price for 1 piece.

Technical specifications

Product code:	UNK-2022KW-15
Recommended age:	3-15 years
Free fall height:	1,5 m
Maximum number of users:	13

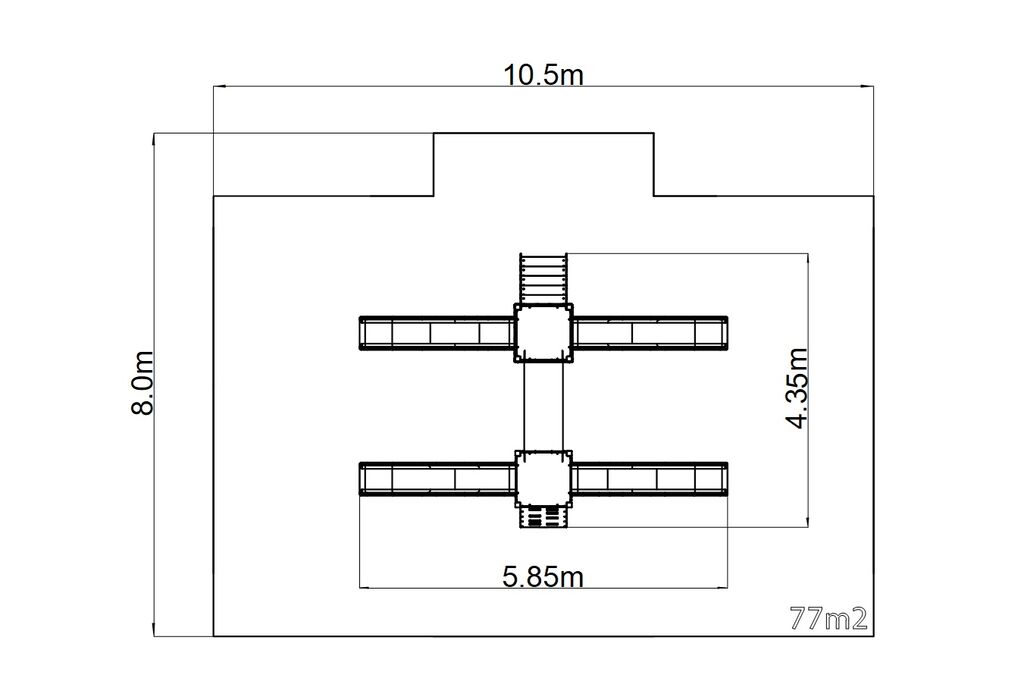

Measurements:	5,85 x 4,35 x 3,56 m
Required area for assembly:	10,5 x 8 m
Fall damping surface:	77 m²
Standard:	ČSN EN 1176-1 ed.2 +A1:2024 ČSN EN 1176-2 ed.2:2018 ČSN EN 1176-3 ed.2:2018

The supporting structure is made of galvanized structural steel and then powder coated, and all other metal parts are made of black structural steel, sandblasted, duplex sprayed with powder coated.

All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.

The slide is made from fibreglass. The surfaces of the slides, steps, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The platforms are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). The roofs are made from HPL (High-pressure laminate, which is characterised by high colour stability, UV resistance and water resistance). The climbing holds are made from the polyester, which ensures long life, colour preservation as well as skin friendly surface. All fastening material is galvanized or stainless steel.
