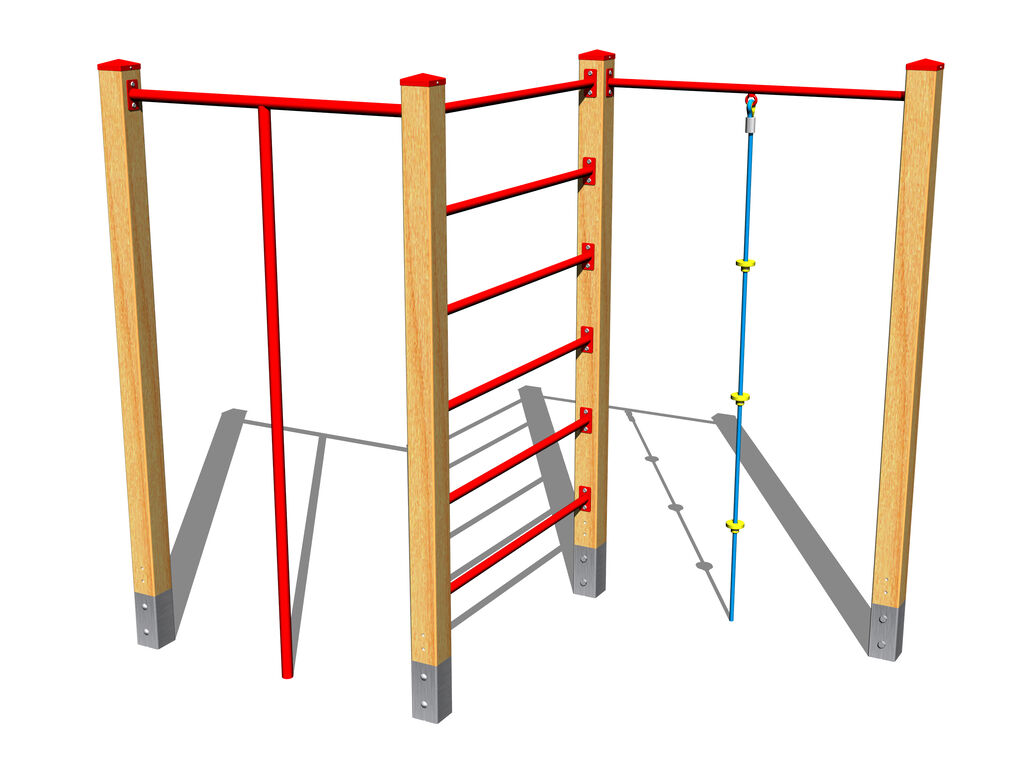

Climbing set SS302D
Product code: SS-302D-20
Climbing pole, Swedish ladder, climbing rope. More information
Technical specifications
Product code: | SS-302D-20 |
---|---|
Weight: | 87.53 kg |
Recommended age: | 3-15 years |
Free fall height: | 2 m |
Load capacity: | 162 kg |
Maximum number of users: | 3 |

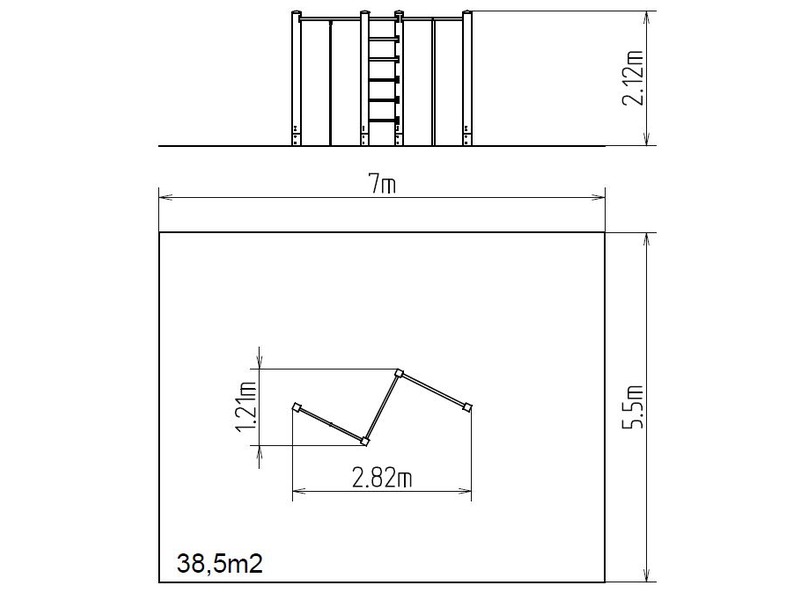

Measurements: | 2,82 x 1,21 x 2,12 m |
Required area for assembly: | 7 x 5,5 m |
Fall damping surface: | 38,5 m2 |
The climbing set support structure ismade from thick glued wooden supports. This solution ensures maximum protection against cracking, which is common for products made from solid wood. The wooden supports are impregnated and coated with a triple layer of lacquer, which meets the terms and conditions of the EN71/3 Standard (safe for children's toys). The structures are anchored into the ground in steel plates, which are protected against corrosion by hot-dip galvanizing and fixed in a concrete bed. The anchors are fastened to the play unit with bolts and their structure ensures that they are not in direct contact with the ground. All other metal units are zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.
The climbing rope is made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core). All fastening material is galvanized or stainless steel.
No comments or questions Climbing set SS302D regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
