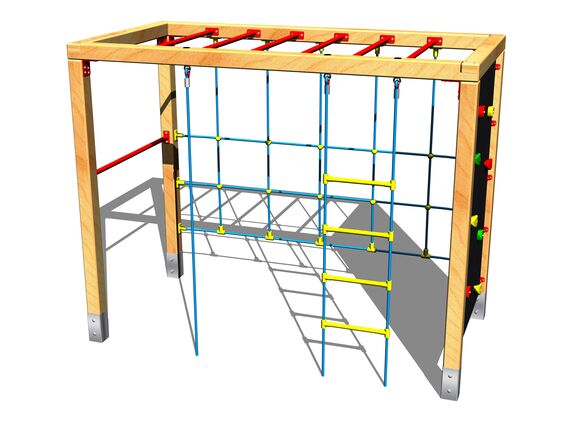

Climbing set SS608D
Product code: SS-608D-20
Climbing wall, climbing net, monkey bars, fitness rack, rope ladder, climbing rope. More information
Technical specifications
Product code: | SS-608D-20 |
---|---|
Recommended age: | 3-15 years |
Free fall height: | 2 m |
Load capacity: | 378 kg |
Maximum number of users: | 7 |

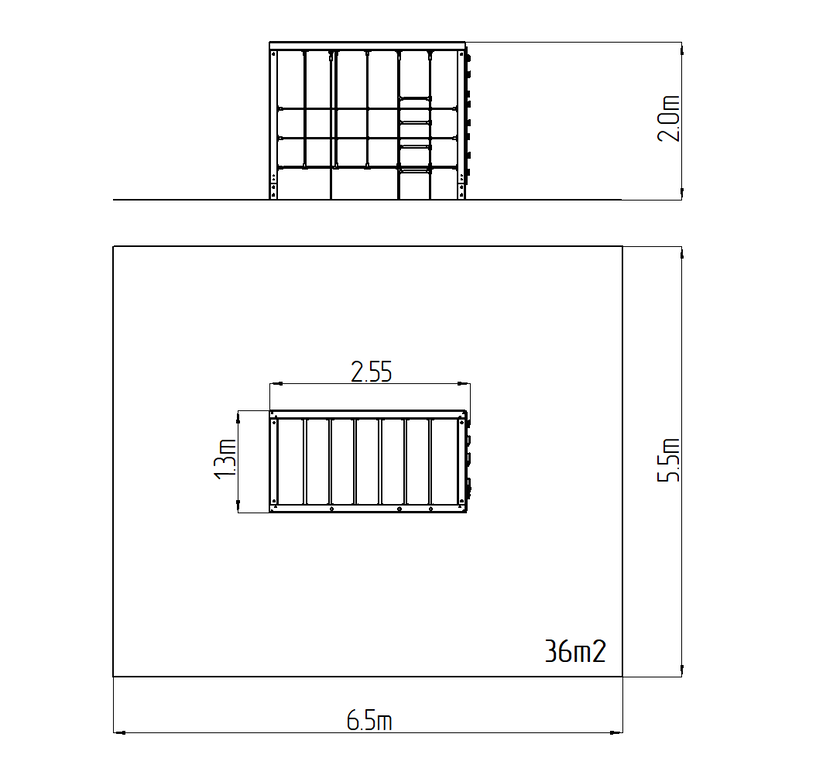

Measurements: | 2,55 x 1,3 x 2 m |
Required area for assembly: | 6,5 x 5,5 m |
Fall damping surface: | 36 m2 |
The climbing set support structure is made from thick glued wooden supports. This solution ensures maximum protection against cracking, which is common for products made from solid wood. The wooden supports are impregnated and coated with a triple layer of lacquer, which meets the terms and conditions of the EN71/3 Standard (safe for children's toys). The structures are anchored into the ground in steel plates, which are protected against corrosion by hot-dip galvanizing and fixed in a concrete bed. The anchors are fastened to the play unit with bolts and their structure ensures that they are not in direct contact with the ground. All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.
The climbing nets are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and they are connected with plastic joints. The climbing wall is made from water-proof plywood designed for external use. The climbing holds are made from the mix of silica sand and epoxy resin, which ensures long life, colour preservation as well as skin friendly surface. All fastening material is galvanized or stainless steel.
No comments or questions Climbing set SS608D regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
