Climbing set SS804D

Climbing set SS804D

Products from the same category:

New product

Product code: SS-804D-20

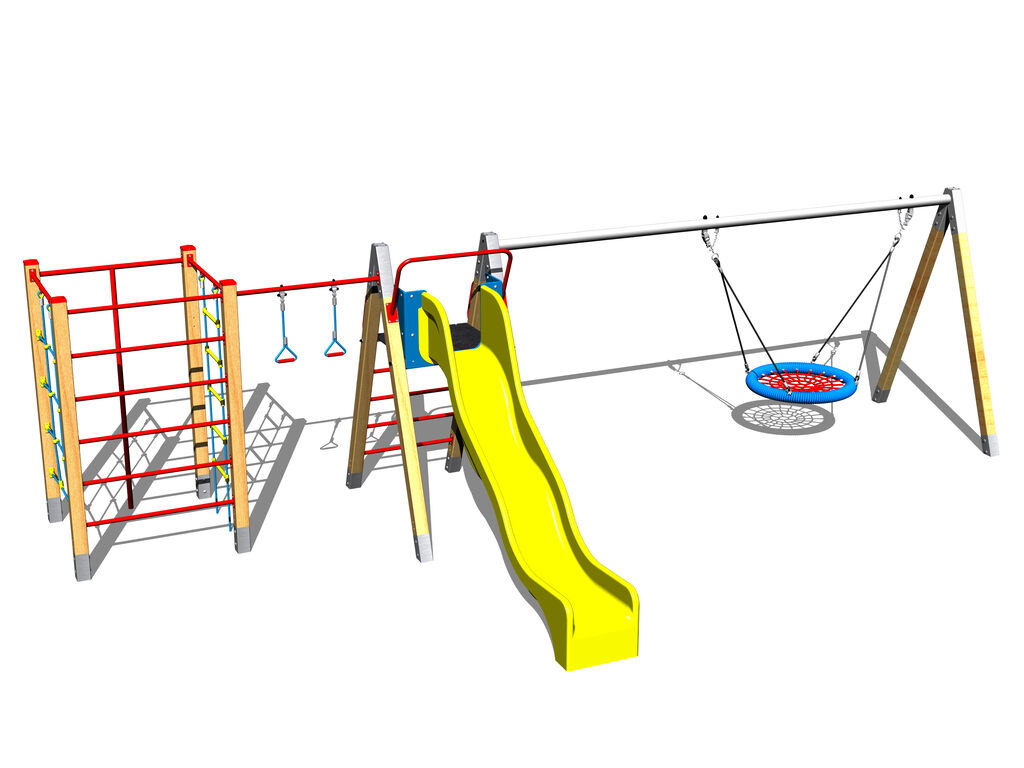

Climbing net, Swedish ladder, rope ladder, 2x handle, sloping ladder with metal steps, slide, chain swing, 2x swinging rope loop, climbing pole. More information

Ask

Technical specifications

Product code: SS-804D-20
Recommended age: 3-15 years
Free fall height: 2 m
Load capacity: 756 kg
Maximum number of users: 14

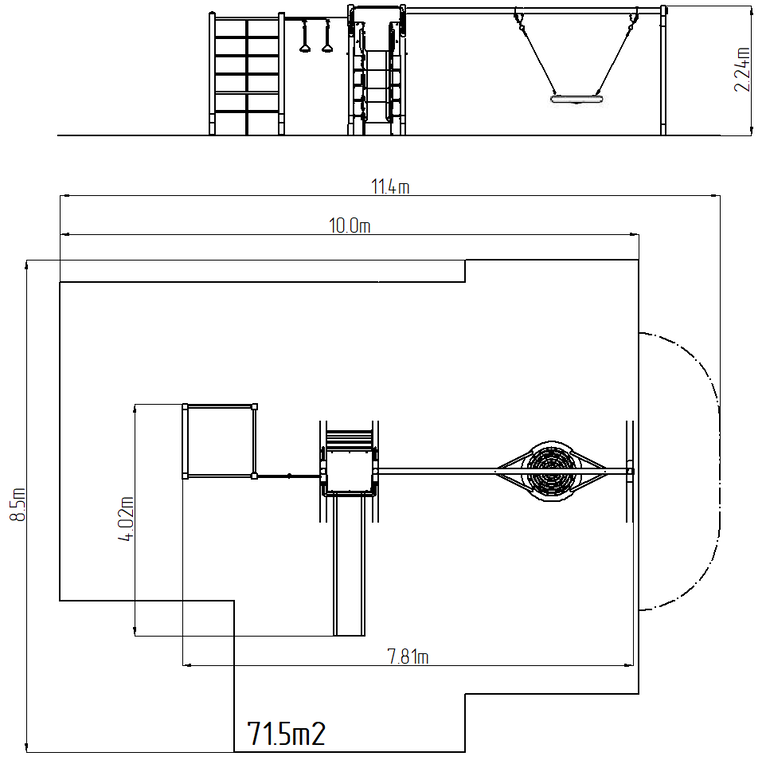

Measurements: 7,81 x 4,02 x 2,24 m
Required area for assembly: 11,4 x 8,5 m
Fall damping surface:
71,5 m2

The climbing set support structure is made from 100 x 100 mm thick glued wooden supports. This solution ensures maximum protection against cracking, which is common for products made from solid wood. The wooden supports are impregnated and coated with a triple layer of lacquer, which meets the terms and conditions of the EN71/3 Standard (safe for children's toys). The structures are anchored into the ground in steel plates, which are protected against corrosion by hot-dip galvanizing and fixed in a concrete bed. The anchors are fastened to the play unit with bolts and their structure ensures that they are not in direct contact with the ground. All other metal units are zinc coated and KOMAXIT powder coated according to the RAL.

The climbing net and the rope ladder are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and they are connected with plastic joints. The slide is made from fibreglass. The surface of the slide is made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The platform is made from water-proof plywood designed for external environment or from HDPE should the client require. The climbing wall is made from water-proof plywood designed for external use. The climbing holds are made from the mix of silica sand and epoxy resin, which ensures long life, colour preservation as well as skin friendly surface. The Normal seat is made of aluminum, covered with a soft and comfortable rubber. The chains are stainless steel, resulting in a very prolonged service life of the product. All fastening material is galvanized or stainless steel.
