roHexad group chain swing RH1610KB - blue
Product code: RH-1610KB-10

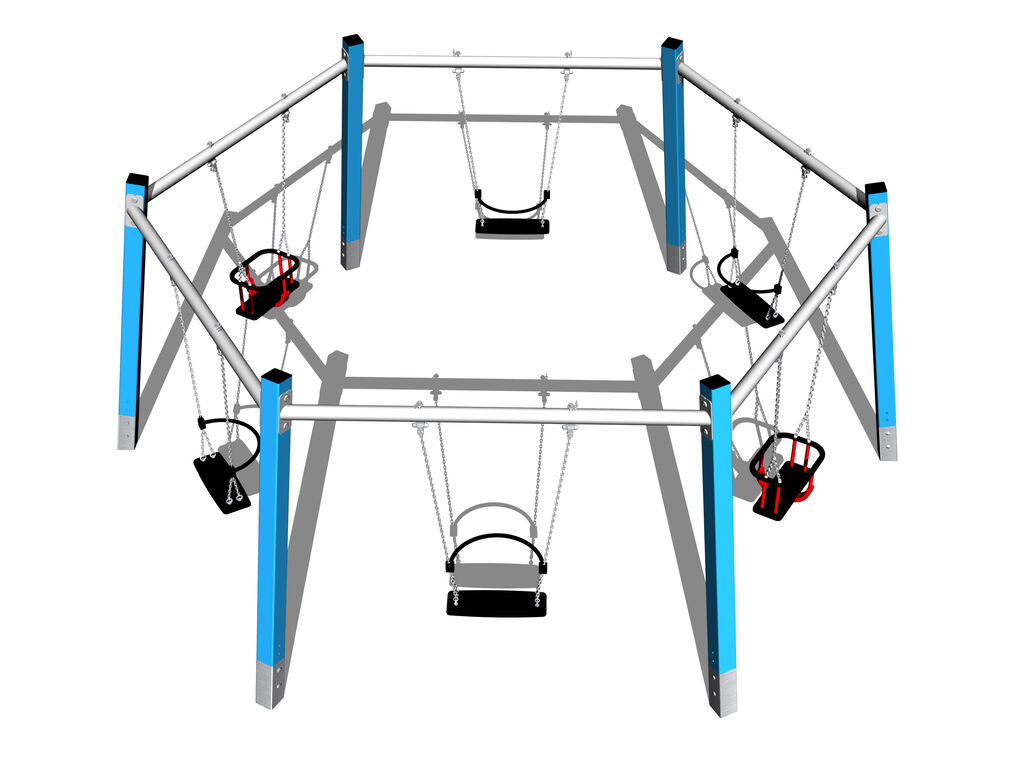

6x metal beam (galvanized), 4x Normal seat, 2x Baby seat.We offer three color variants of the support structure - red, blue and brown. More information
Choose the color option
Technical specifications
| Product code: | RH-1610KB-10 |
|---|---|
| Recommended age: | 2-15 years |
| Free fall height: | 1.0 m |
| Load capacity: | 324 kg |
| Maximum number of users: | 6 |

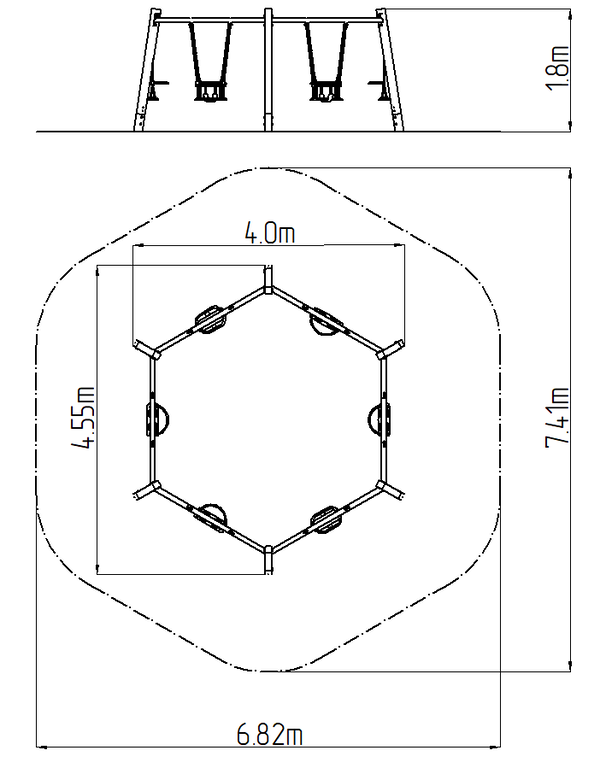

| Measurements: | 4 x 4,55 x 1,8 m |
| Required area for assembly: | 6,82 x 7,41 m |
| Fall damping surface: |
The support structure of the swing is made from structural steel, which is zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion. The structures are anchored into the ground in steel plates, which are protected against corrosion by hot-dip galvanizing a and fixed in a concrete bed. The anchors are fastened to the play unit with bolts and their structure ensures that they are not in direct contact with the ground.
The seat is made of rubber and is reinforced with an aluminum insert. The Normal seat is made of aluminum, covered with a soft and comfortable rubber. The chains are stainless steel, resulting in a very prolonged service life of the product. All fastening material is galvanized or stainless steel.
No comments or questions Hexad group chain swing RH1610KB - blue regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
