Rope ship LP170KB - blue

Rope ship LP170KB - blue

Products from the same category:

Product code: LP-170KB-15

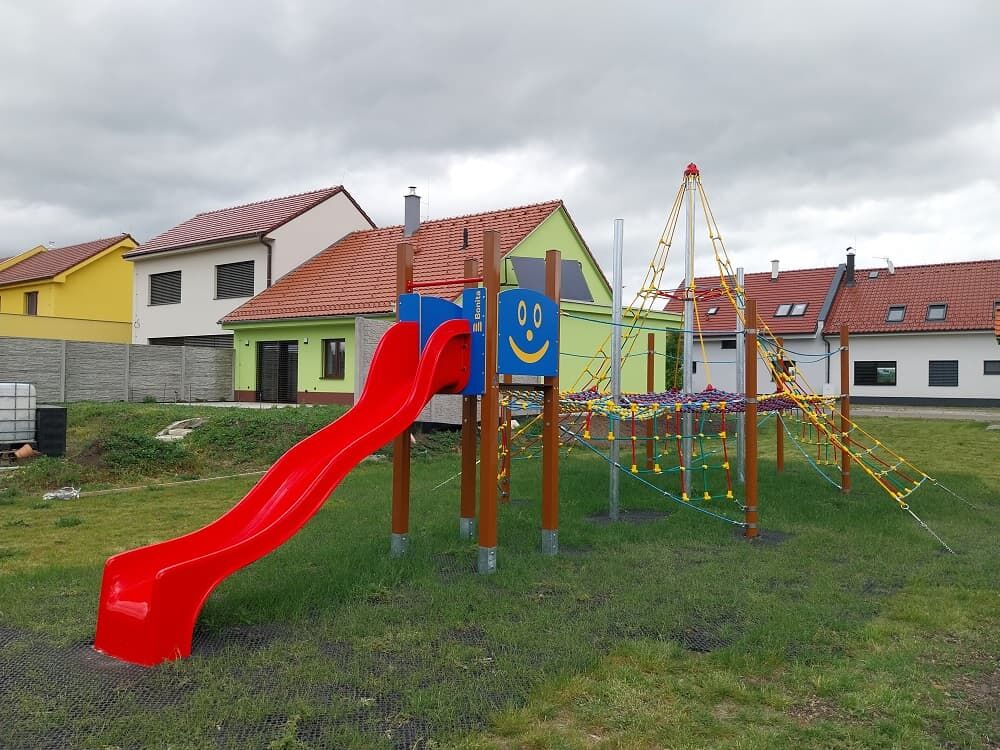

Rope ship LP170K - we offer two color variants of the support structure - blue and brown. More information

Ask

Choose the color option

Technical specifications

Product code: LP-170KB-15
Weight: 742.8 kg
Recommended age: 2-10 years
Free fall height: 1,5 m
Load capacity: 2970 kg
Maximum number of users: 55

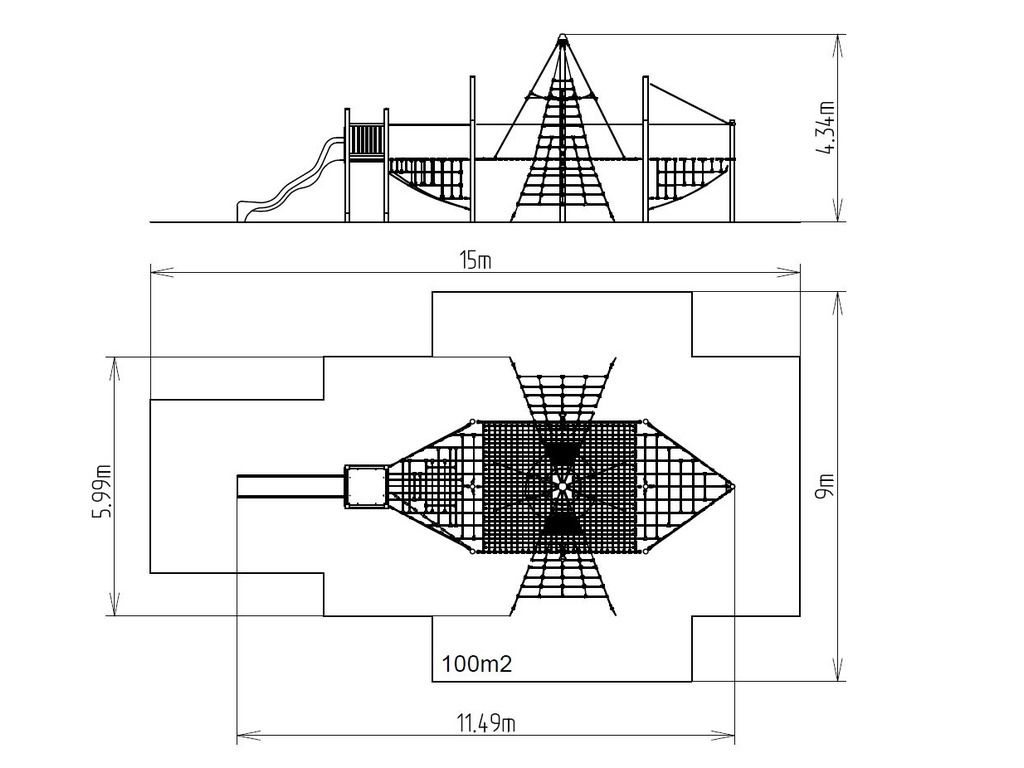

Measurements: 11,49 x 5,99 x 4,34 m
Required area for assembly: 15 x 9 m
Fall damping surface:
100 m2
The support structures of the rope unit are made from structural steel with a diameter of 108 mm (support pillar with a diameter of 159 mm), they are zinc coated and KOMAXIT powder coated according to the RAL colour chart and fixed in a concrete bed. The tower support structures are made from structural steel. The ropes are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and are connected with plastic joints. The slide is made from fibreglass. The surface on the slide is made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The platform is made from water-proof plywood or from HDPE should the client require. All fastening material is galvanized or stainless steel.
