Rope ship LP170KW - brown

Technical specifications

Product code:	LP-170KW-15
Weight:	742.8 kg
Recommended age:	2-10 years
Free fall height:	1,5 m
Maximum number of users:	55

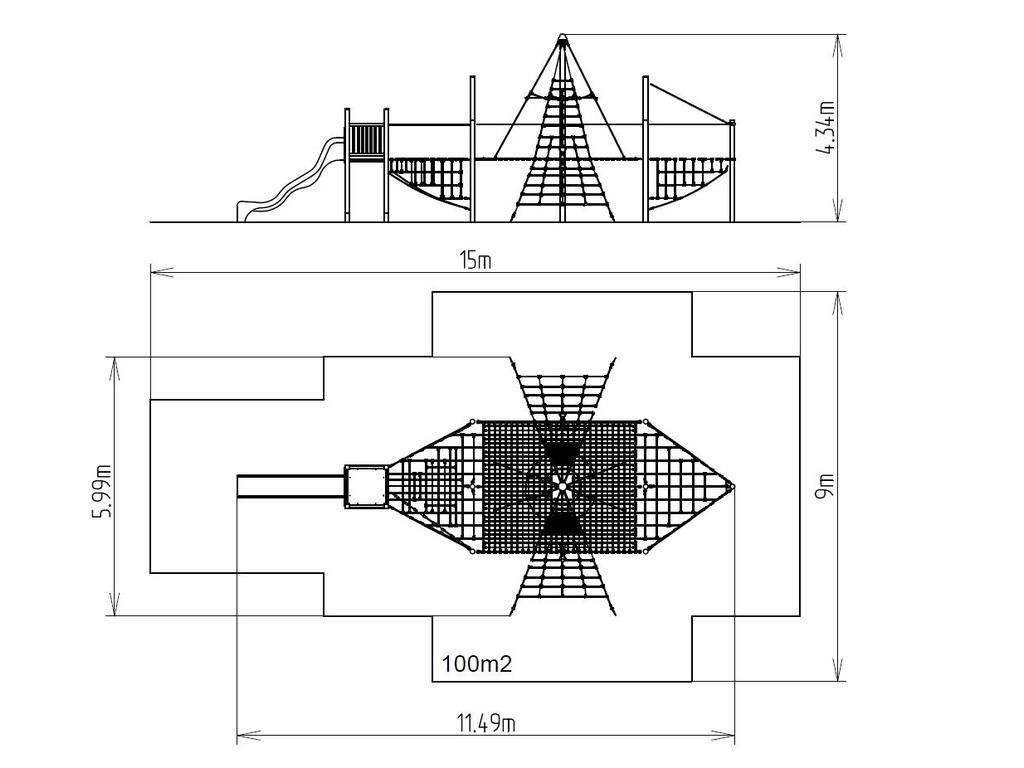

Measurements:	11,49 x 5,99 x 4,34 m
Required area for assembly:	15 x 9 m
Fall damping surface:	100 m2
Standard:	ČSN EN 1176-1 ed.2 +A1:2024 ČSN EN 1176-3 ed.2:2018 ČSN EN 1176-11:2015

The support structures of the rope unit are made from structural steel with a diameter of 108 mm (support pillar with a diameter of 159 mm), they are zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion and fixed in a concrete bed. The tower support structures are made from structural steel. The ropes are made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and are connected with plastic joints. The slide is made from fibreglass. The surface on the slide is made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The platform is made from water-proof plywood or from HDPE should the client require. All fastening material is galvanized or stainless steel.
