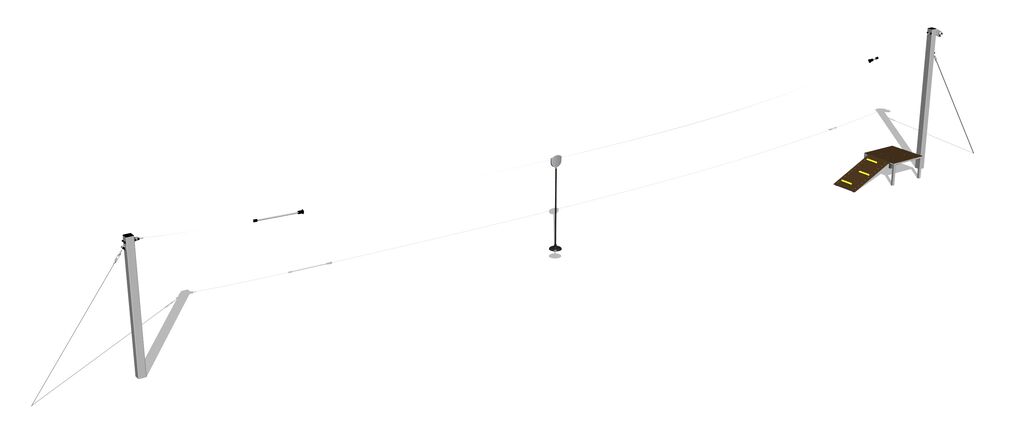

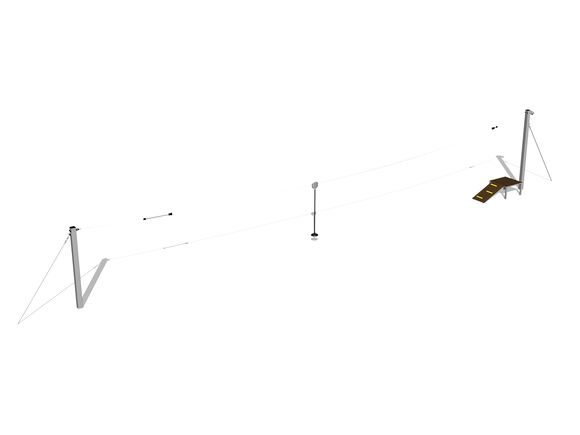

roSingle post cableway LD011K - galvanized
Product code: LD-011KZ20-10
Single post cableway with a ramp LD011K - there is no need for a fall zone up to the height of 1 m, a grass surface is enough. More information
Technical specifications
| Product code: | LD-011KZ20-10 |
|---|---|
| Weight: | 201.43 kg |
| Recommended age: | 3-15 years |
| Free fall height: | 1 m |
| Maximum number of users: | 2 |

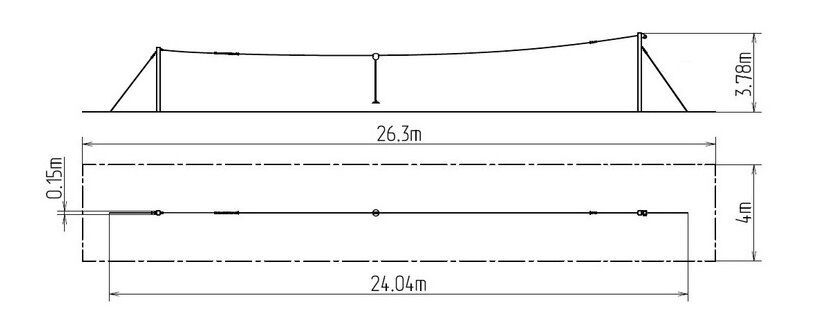

| Measurements: | 24,04 x 0,15 x 3,78 m |
| Required area for assembly: | 26,3 x 4 m |
| Fall damping surface: | |
| Standard: | ČSN EN 1176-1 ed.2 +A1:2024 ČSN EN 1176-4 ed.2:2019 |
The support structure are made from structural steel and is protected from corrosion by hot-dip galvanizing, which significantly prolongs the life of the play unit. The structure is fixed in a concrete bed. All other metal units are zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion. The platform and the ramp are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). All fastening material is galvanized or stainless steel.
No comments or questions Single post cableway LD011K - galvanized regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
