Product code: LD-021KW20-10

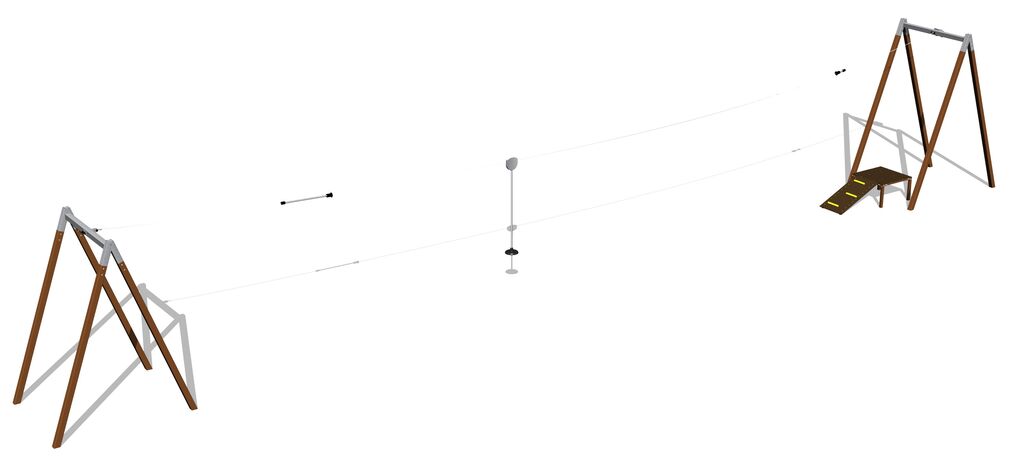

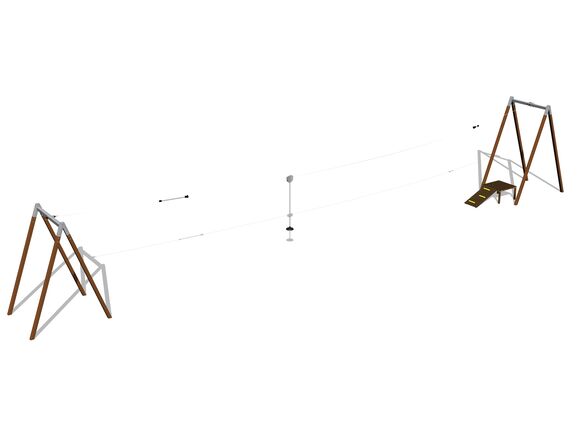

Twin post cableway with a ramp LD021K - there is no need for a fall zone up to the height of 1 m, a grass surface is enough. More information
| Product code: | LD-021KW20-10 |
|---|---|
| Weight: | 422.8 kg |
| Recommended age: | 3-15 years |
| Free fall height: | 1 m |
| Load capacity: | 130 kg |
| Maximum number of users: | 2 |

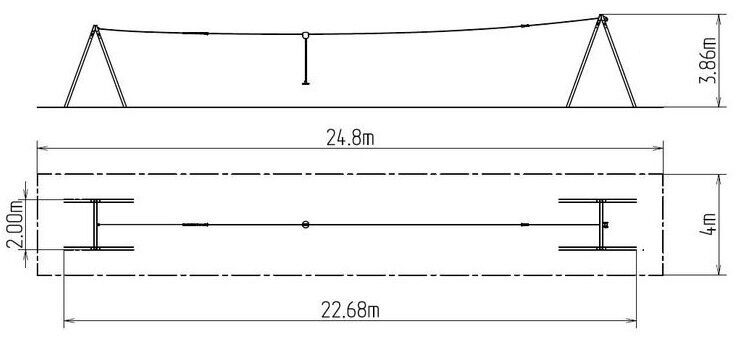

| Measurements: | 22,68 x 2 x 3,86 m |
| Required area for assembly: | 24,8 x 4 m |
| Fall damping surface: |
The support structure are made from structural steel which is protected against corrosion by zinc coating, resulting in a very prolonged service life or duplex powder coated with coat curing according to RAL to prevent corrosion The structure is fixed in a concrete bed. All other metal units are zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion The platform and the ramp are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). Steps are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). All fastening material is galvanized or stainless steel.
No comments or questions Twin post cableway LD021KW - Brown regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
