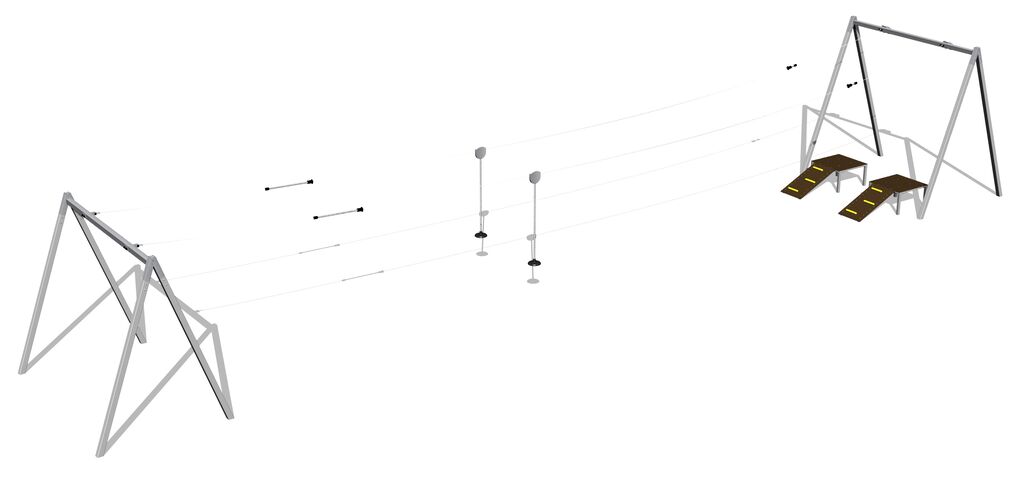

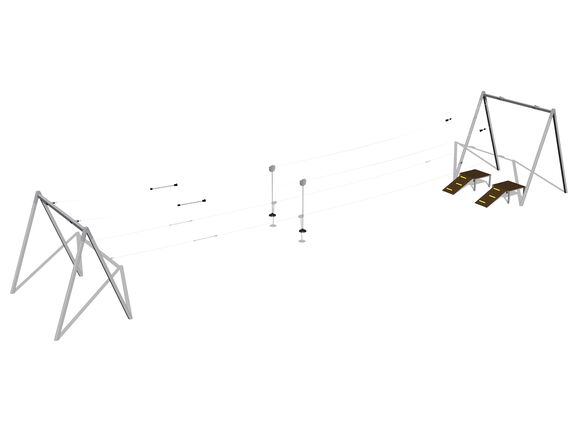

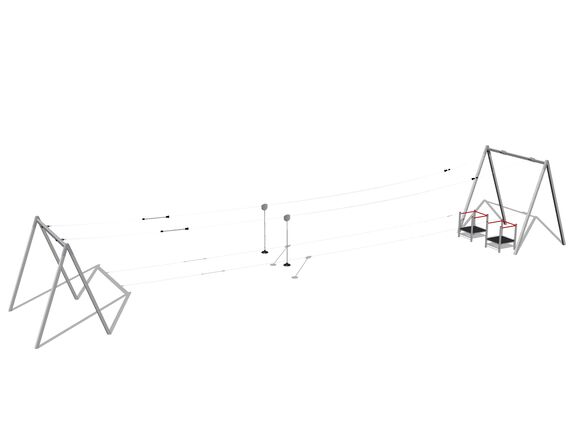

Twin post cableway with a ramps LD031K - galvanized

Twin post cableway with a ramps LD031K - galvanized

Product code: LD-031KZ20-10

Twin post cableway with a ramps LD031K - there is no need for a fall zone up to the height of 1 m, a grass surface is enough. More information

Ask

Technical specifications

Product code: LD-031KZ20-10
Recommended age: 3-15 years
Free fall height: 1 m
Maximum number of users: 4

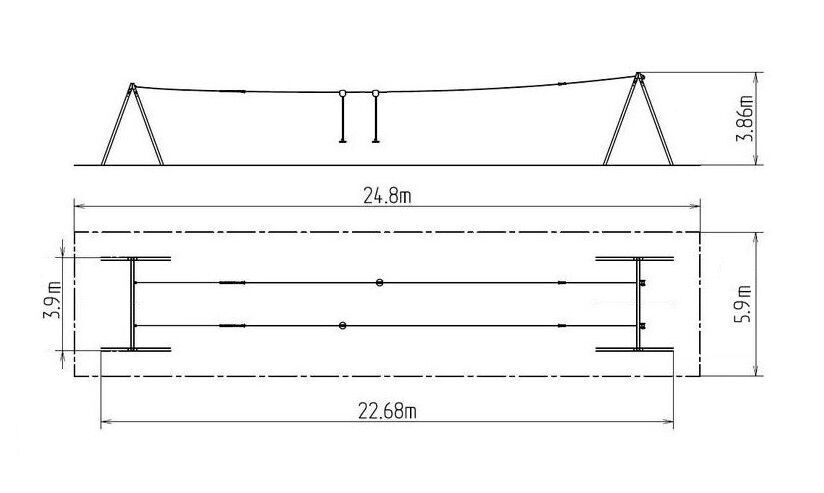

Measurements: 22,68 x 3,9 x 3,86 m
Required area for assembly: 24,8 x 5,9 m
Fall damping surface:
Standard: ČSN EN 1176-1 ed.2 +A1:2024
ČSN EN 1176-4 ed.2:2019

The support structure are made from structural steel and is protected from corrosion by hot-dip galvanizing, which significantly prolongs the life of the play unit. The structure is fixed in a concrete bed. All other metal units are zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion. The platform is made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). All fastening material is galvanized or stainless steel.
