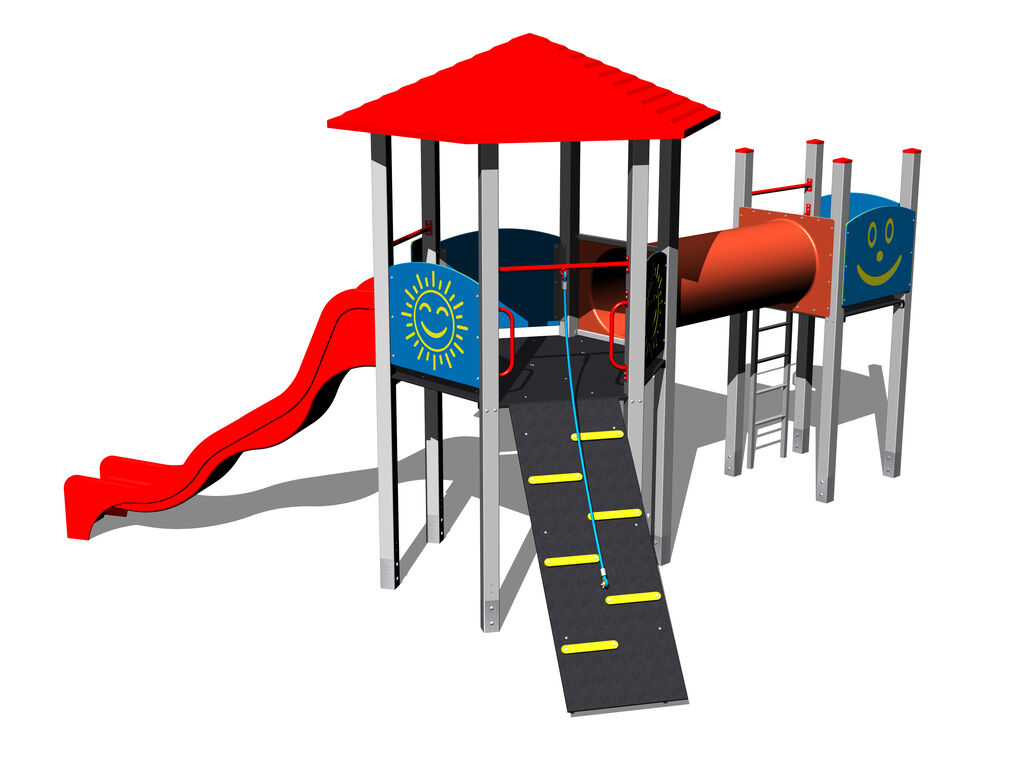

UNIVERSAL 6U220KS - silver

Technical specifications

Product code:	6U-220KS-15
Weight:	661.02 kg
Recommended age:	3-15 years
Free fall height:	1,5 m
Load capacity:	702 kg
Maximum number of users:	13

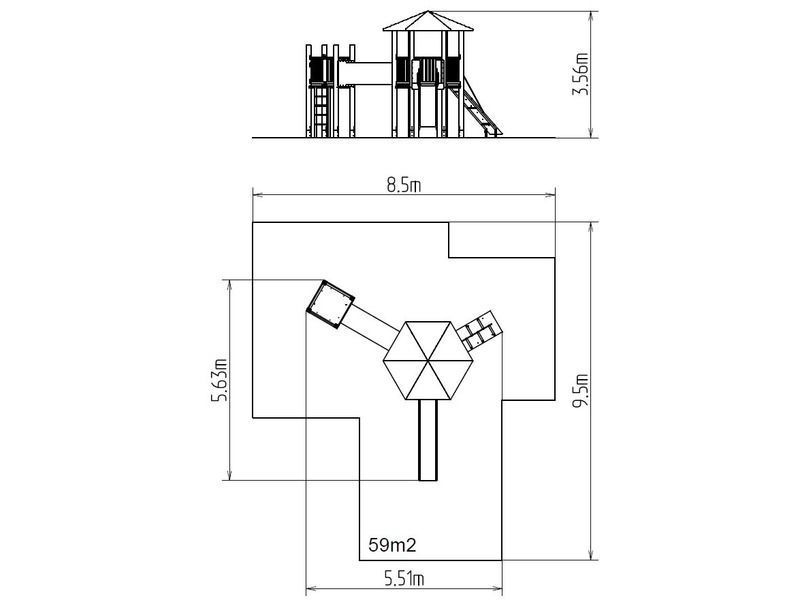

Measurements:	5,51 x 5,63 x 3,56 m
Required area for assembly:	8,5 x 9,5 m
Fall damping surface:	59 m2

The support structure of the tower unit is made of structural steel which is protected against corrosion by zinc coating, resulting in a very prolonged service life of the workout elements, or duplex powder coated with coat curing according to RAL to prevent corrosion. All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.

The slide is made from fibreglass. The surfaces of the slide, steps, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The rope is made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core). The platforms and the ramp are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). Crawl tunnel is made from fibreglass which is UV stable and it is characterised by high colour stability. All fastening material is galvanized or stainless steel.
