Product code: 4U-412KS-15

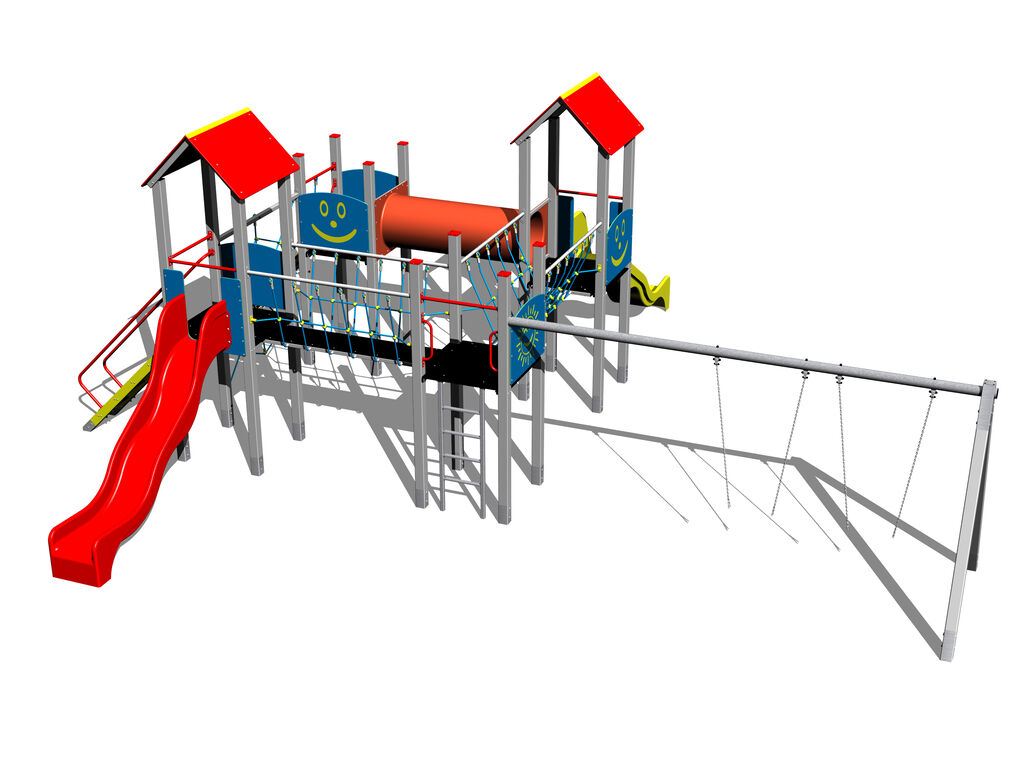

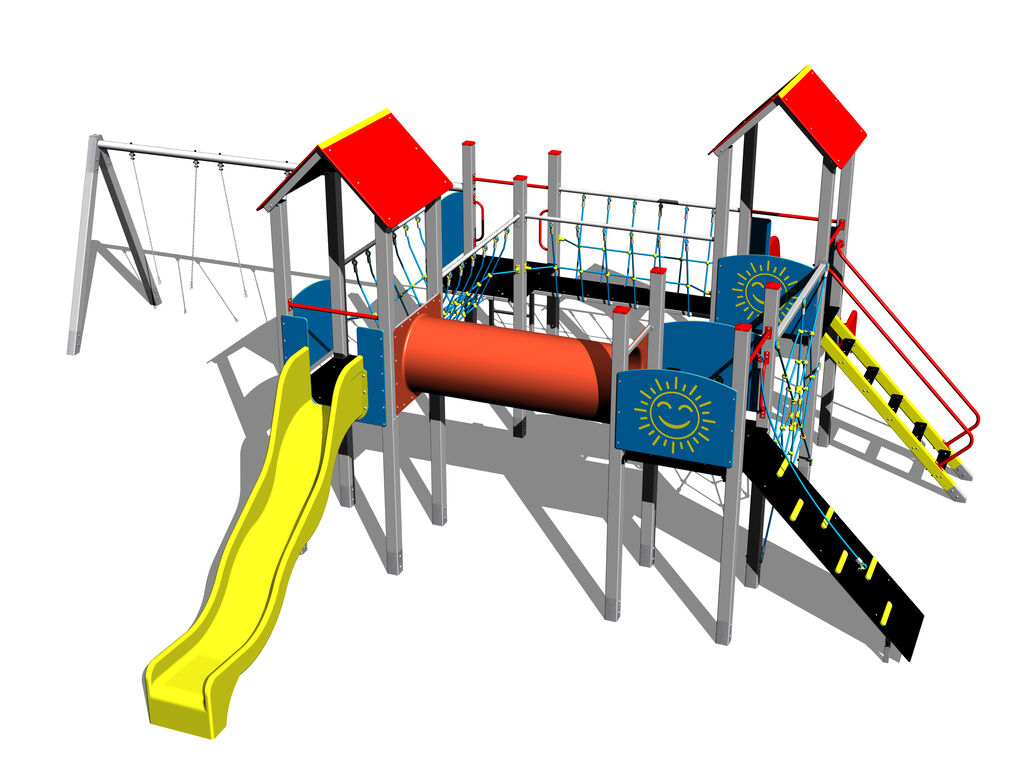

4x tower, 2x A-shaped roof, 2x slide, 5x barrier from HDPE, sloping ramp with the rope and HDPE steps, ladder, rope bridge, crawl tunnel between the towers, sloping ramp with steps and metal handles, spider web, bridge with a metal railing, twin chain swing. More information
| Product code: | 4U-412KS-15 |
|---|---|
| Weight: | 1225.94 kg |
| Recommended age: | 3-15 years |
| Free fall height: | 1,5 m |
| Load capacity: | 2322 kg |
| Maximum number of users: | 43 |

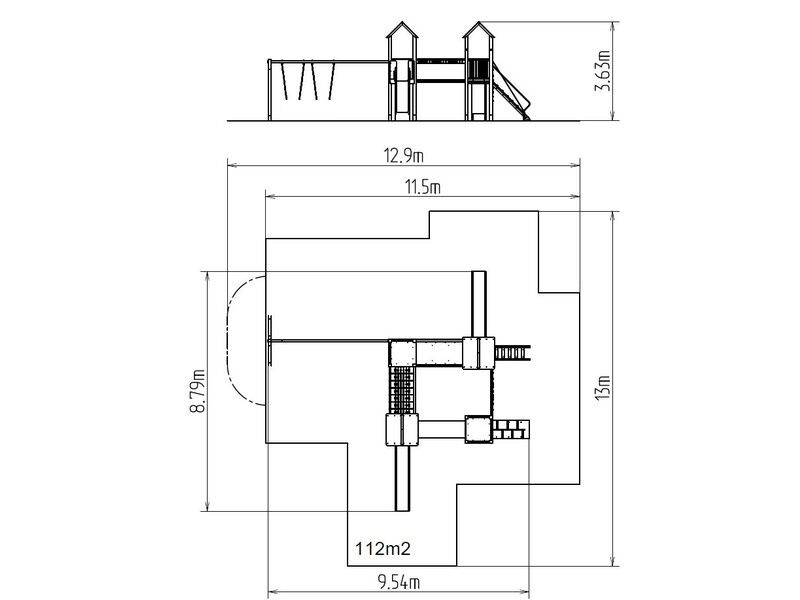

| Measurements: | 9,54 x 8,79 x 3,63 m |
| Required area for assembly: | 12,9 x 13 m |
| Fall damping surface: | 112 m2 |
The support structure of the tower unit is made of structural steel which is protected against corrosion by zinc coating, resulting in a very prolonged service life or duplex powder coated with coat curing according to RAL to prevent corrosion. All other metallic elements are also zinc coated or duplex powder coated with coat curing according to RAL to prevent corrosion.
The slide is made of fiberglass. The face of the slide and the step boards are made of high quality HDPE (high-pressure, full-coloured polyethylene, which is characterised by high colour stability, UV resistance and mainly safety because it is rigid and there is no risk of injury caused by sharp broken fragments). Ropes and nets are made of HERKULES (16 mm polypropylene ropes with inner steel core) and are connected by plastic connectors. The crawler tunnel is made of fibreglass with high UV stability and high colour stability. The platforms and ramp are made from HPL (High-pressure laminate, which is characterised by high colour stability and water resistance). The roofs are made from HPL (High-pressure laminate, which is characterised by high colour stability, UV resistance and water resistance). All connecting material is zinc or stainless steel coated.
No comments or questions UNIVERSAL 4U412KS - silver regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
