UNIVERSAL 4U415KW-B - brown

UNIVERSAL 4U415KW-B - brown

Products from the same category:

Product code: 4U-415KW-10-B

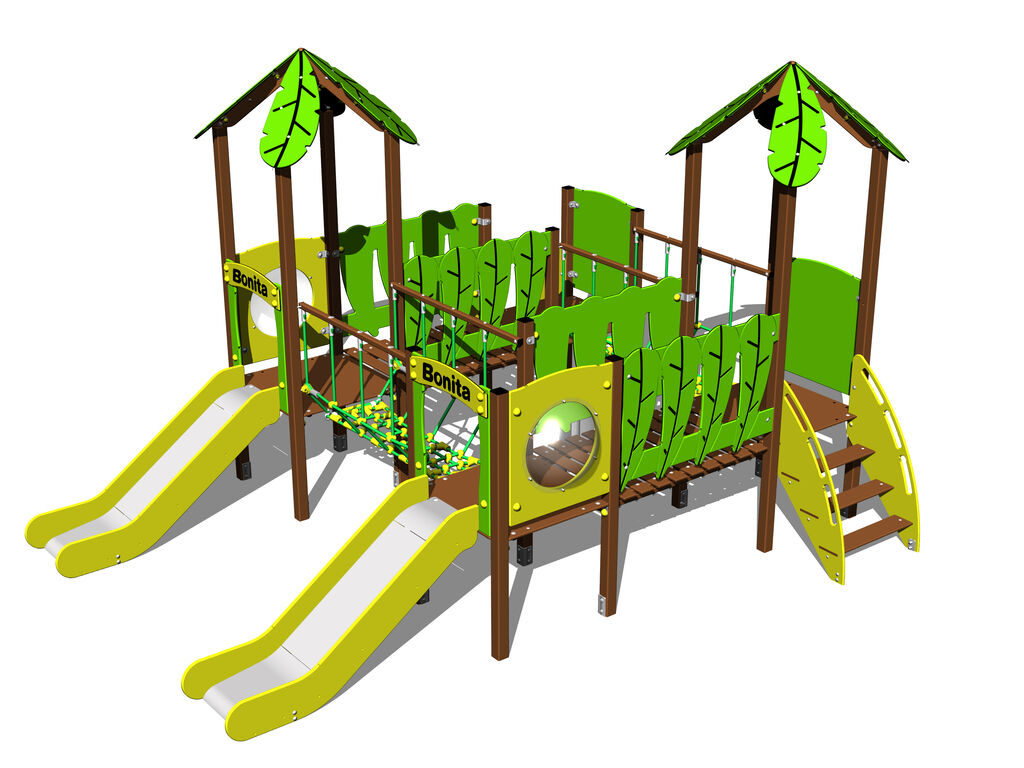

4x Tower, 2x slide, 2x roof in the shape of a leaf, 2x sloping ramp with steps and HDPE handles, 2x barrier, rope bridge, 2x barrier with an aperture, 2x bridge with plastic railings. More information

Ask

Technical specifications

Product code: 4U-415KW-10-B
Recommended age: 1-10 years
Free fall height: 1 m
Load capacity: 918 kg
Maximum number of users: 17

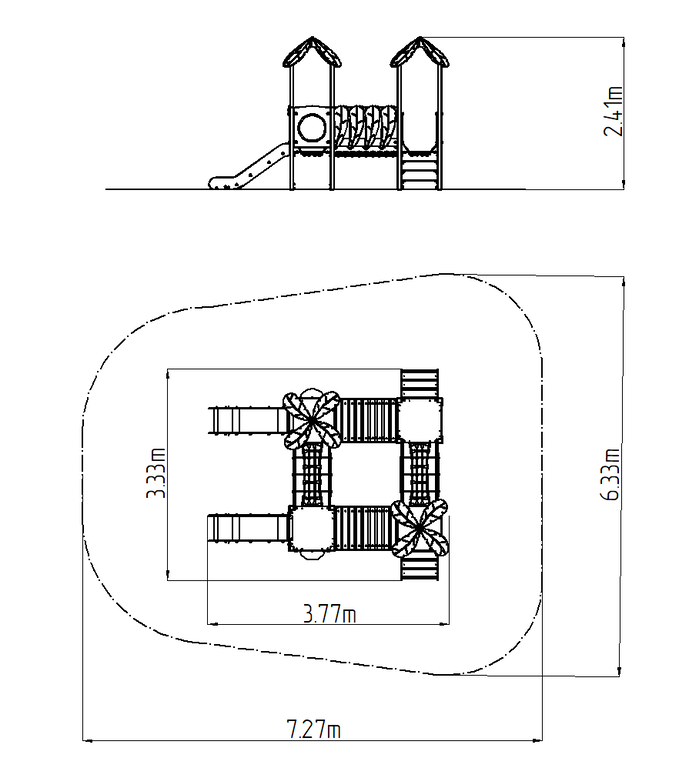

Measurements: 3,77 x 3,33 x 2,41 m
Required area for assembly: 7,27 x 6,33 m
Fall damping surface:
The support structure of the tower unit is made of structural steel (metal profile 60 × 60 mm) which is protected against corrosion by zinc coating, resulting in a very prolonged service life of the workout elements, and coating with baked paint KOMAXIT according to the RAL colour system. All other metallic elements are also zinc coated and treated with baked paint KOMAXIT according to the RAL colour system.

The slides are made from stainless steel. The surfaces of the slides, barriers, etc. are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The rope bridge is made using HERKULES material (16 mm thick ropes made from polypropylene with a steel internal core) and are connected with plastic or aluminium joints. The platform and the ramp are made from HPL (High-pressure laminate, which is characterised by high colour stability, UV resistance and water resistance). All fastening material is galvanized or stainless steel.
