| Product code: | KZ-160KW-10-B |
|---|---|
| Recommended age: | 1-10 years |
| Free fall height: | 1 m |
| Load capacity: | 54 kg |
| Maximum number of users: | 1 |

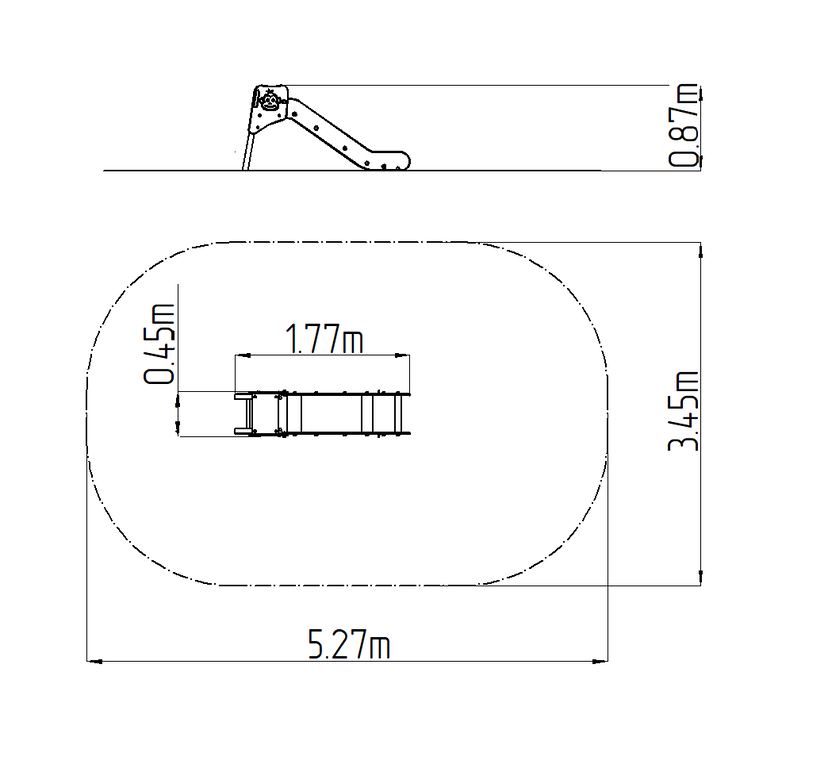

| Measurements: | 0,45 x 1,77 x 0,87 m |
| Required area for assembly: | 3,45 x 5,27 m |
| Fall damping surface: |
The support structure of the slide is made from structural steel (steel profile 60 x 60 mm), which is KOMAXIT powder coated according to the RAL colour chart and is fixed in a concrete bed. All metal units are zinc coated and KOMAXIT powder coated according to the RAL colour chart.
The slide is made from stainless steel. Side walls are made from high quality HDPE plastic (high density coloured polyethylene, which is characterised by high colour stability, UV resistance but mainly safety as it doesn't break and therefore there is no danger of injury to children by sharp fragments). The platform is made from HPL (High-pressure laminate, which is characterised by high colour stability, UV resistance and water resistance).. All fastening material is galvanized or stainless steel.
No comments or questions Slide with a ladder KZ160KW (f.h. 1 m) - brown regarding this product. Do not hesitate to ask.
Technical sheet [170 kB, PDF]
